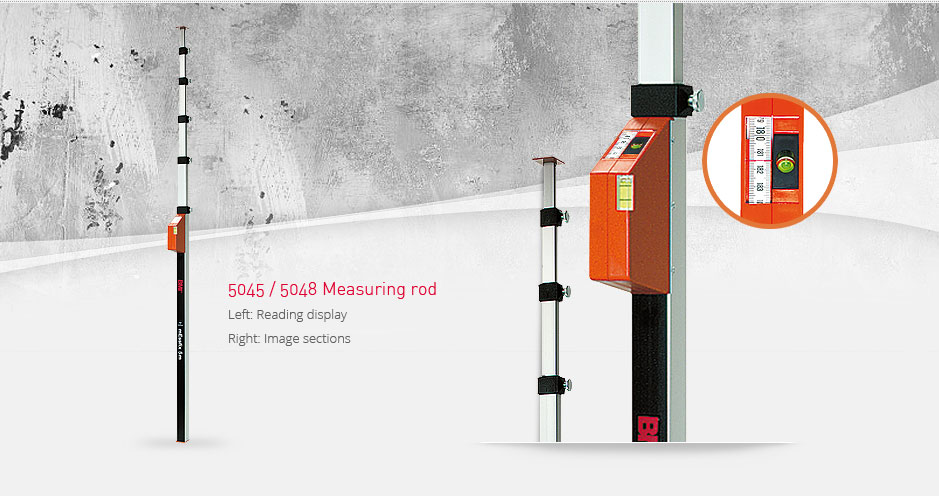

The 5045 and 5048 telescopic measuring rods are made of anodized aluminium profile with a telescopic section clamp.
5 and 6 telescope sections allow a maximum length of 5 m and 6 m, respectfully. Indications can be read from the display.
| Design | Length min / max |
Telescope sections | Material | Cross section mm | Weight kg | Front graduation | Rear graduation |
| 710 5045 | 1030 / 5000 | 5 | Aluminium / Square | 38 / 36 | 2.0 | mm | - |
| 710 5048 | 1530 / 8000 | 6 | Aluminium / Square | 38 / 36 | 2.6 | mm | - |
