Steel

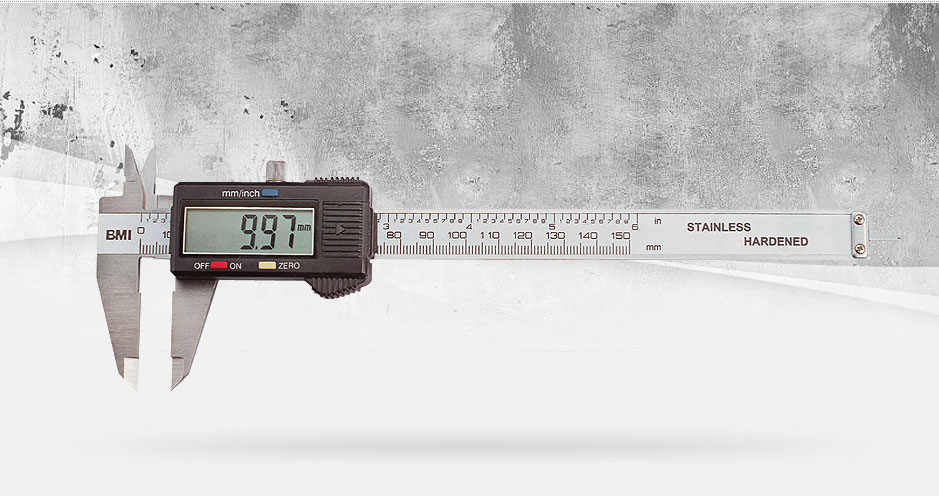

770 Digital caliper

Digital caliper with LCD-display 11 mm, with data output, according to DIN 862, display in mm and inch, made of stainless steel, satin-chromed graduation.

4-fold measurement, with a locking screw, with thread table, including replacement battery, in the plastic box.

Articles

Available designs

Design Measuring range mm Reading mm Reading Inch Jaw length mm
770 150 150 0.01 0.0005 40
770 200 200 0.01 0.0005 50
